Contemporary Modern Styles

Plan 40816 Order Code: C101

Modern Style Garage-Living Plan 40816

Name: Modern Style Garage-Living Plan 40816 with 3 Bed, 2 Bath, 2 Car Garage
Brand: COOL house plans
SKU: 40816
Price: 1125.0000 USD
Availability: InStock

1559 Sq Ft, 3 Bedrooms, 2 Full Baths, 2 Car Garage

Thumbnails: ON | OFF

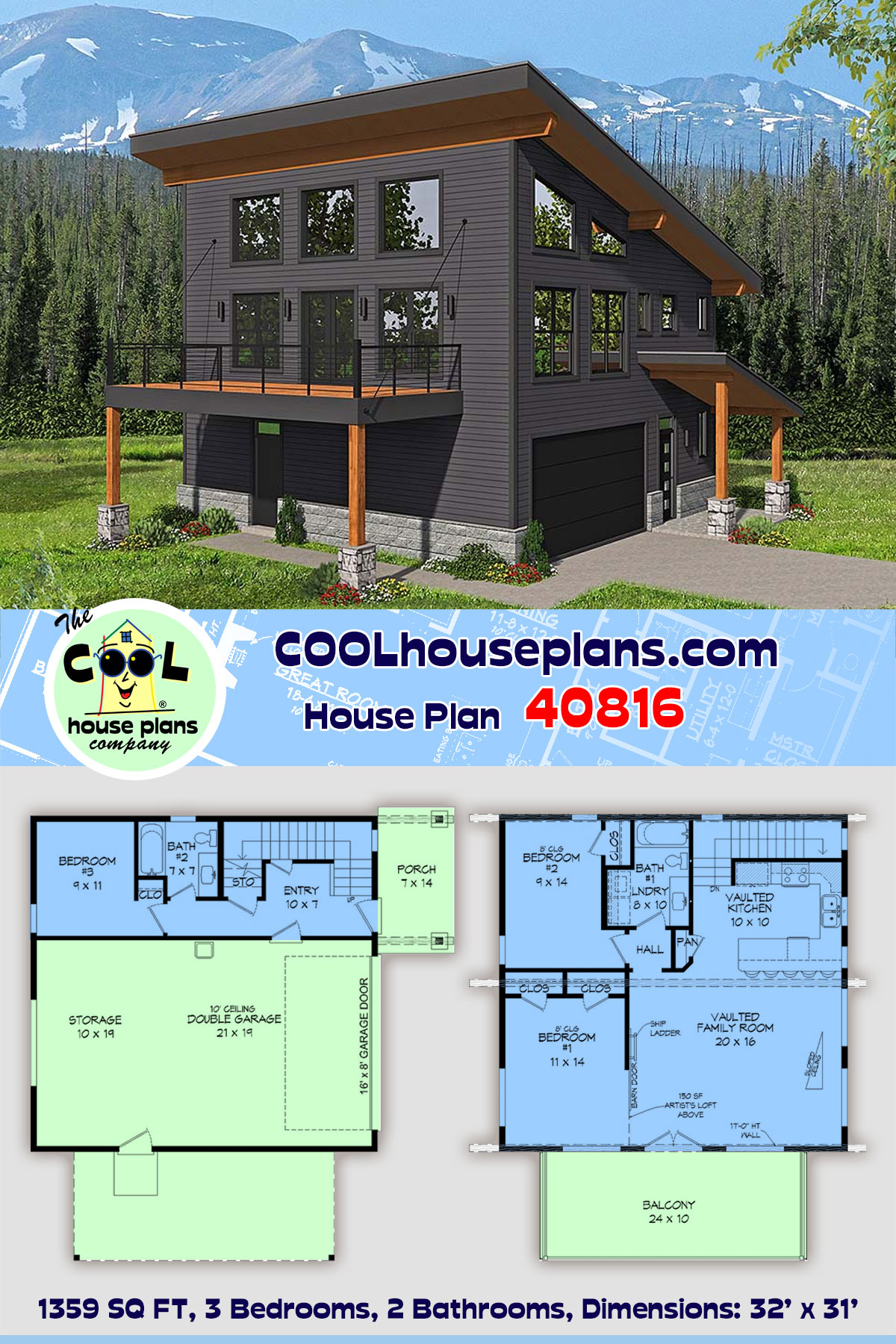

Contemporary, Modern Garage-Living Plan 40816 with 3 Beds, 2 Baths, 2 Car Garage Elevation

Contemporary, Modern Garage-Living Plan 40816 with 3 Beds, 2 Baths, 2 Car Garage First Level Plan

Contemporary, Modern Garage-Living Plan 40816 with 3 Beds, 2 Baths, 2 Car Garage Second Level Plan

Contemporary, Modern Garage-Living Plan 40816 with 3 Beds, 2 Baths, 2 Car Garage Third Level Plan

Contemporary, Modern Garage-Living Plan 40816 with 3 Beds, 2 Baths, 2 Car Garage Rear Elevation

Contemporary, Modern Garage-Living Plan 40816 with 3 Beds, 2 Baths, 2 Car Garage Picture 1

Contemporary, Modern Garage-Living Plan 40816 with 3 Beds, 2 Baths, 2 Car Garage Picture 2

Quick Specs

1559 Total Living Area
367 Main Level
992 Upper Level
200 Bonus Area
3 Bedrooms
2 Full Baths
2 Car Garage
32'0 W x 31'0 D

Quick Pricing

PDF File: $1,125.00
5 Sets: $1,290.00
5 Sets plus PDF File: $1,338.00
CAD File: $1,625.00

COOL Plan Description

Contemporary Garage Apartment House Plan 40816 with 1559 Sq Ft, 3 Bed, 2 Bath, 2 Car Garage

Surf's up, and so are your living options with this fresh and fab Contemporary Garage Apartment House Plan 40816! With a total living area of 1559 sq ft spread over a 2-car garage base, this plan is all about maximizing space and style.

From the get-go, the plan's modern vibes are visible through its sleek architectural lines and the cool, breezy balcony that invites you to chill and enjoy a good sunset. The front porch adds a welcoming touch, perfect for lazy weekend mornings with a cup of joe.

The heart of this home beats in its open floor plan, combining the kitchen, dining, and living areas into a single flow-through space - ideal for gatherings or just kicking back. The kitchen is decked out with a handy pantry for all your snacks and essentials, making it a breeze to whip up some grub for your crew.

The private quarters upstairs keep it laidback but functional, with three cozy bedrooms and two full baths. The primary suite amps up the chill factor with ample space and vibes that make every day feel like a staycation.

Digging deeper into the plan, you'll find a second-floor laundry - no more hauling baskets up and down stairs! And for those who love a little extra, there's 200 sq ft of bonus area to transform into whatever your heart desires.

Outside, the 311 sq ft porch offers more space to relax and entertain, with the potential for an outdoor kitchen or a firepit to take the gatherings up a notch.

Foundation options are laid-back too, with a slab foundation making it straightforward and low maintenance.

Perfect for small families, down-sizers, or anyone looking to add a little easy-breezy to their lifestyle, this garage apartment plan is more than just a place to crash - it's a place to thrive. So grab your board, catch this wave, and make Plan 40816 your new home base!

Add to cart Save Plan Tell A Friend Ask A Question

Plan Specifications

Specifications

Total Living Area:	1559 sq ft
Main Living Area:	367 sq ft
Upper Living Area:	992 sq ft
Bonus Area:	200 sq ft
Garage Area:	625 sq ft
Garage Type:	Drive Under
Garage Bays:	2
Foundation Types:	Slab
Exterior Walls:	2x6
House Width:	32'0
House Depth:	31'0
Number of Stories:	2
Bedrooms:	3
Full Baths:	2
Max Ridge Height:	30'4 from Front Door Floor Level
Primary Roof Pitch:	3.5:12
Roof Load:	50 psf
Roof Framing:	Stick
Porch:	311 sq ft
2nd Floor Laundry:	Yes
Main Ceiling Height:	10'
Vaulted Ceiling:	Yes

Special Features:

2nd Floor Balcony
Entertaining Space
Front Porch
Open Floor Plan
Pantry
Storage Space

Plan Package Pricing

Pricing

PDF File: $1,125.00
5 Sets: $1,290.00
5 Sets plus PDF File: $1,338.00
CAD File: $1,625.00
Single Build License issued on CAD File orders.
Concerning PDF or CAD File Orders: Designer requires that a End User License Agreement be signed before fulfilling PDF and CAD File order.
Materials List: $368.75
Right Reading (True) Reverse: $200.00
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Additional Sets: $35.00

Materials List may take 3-5 weeks to fulfill depending on availability.

Available Foundation Types:

Slab : No Additional Fee

Available Exterior Wall Types:

2x6: No Additional Fee

Prices subject to approval prior to fulfillment.

Shipping Policy

Add to cart

What's Included?

What is Included in this House Plan?

Plans include

a: Floor Plans: House plan drawings indicating dimensions for construction
b: Roof Plan: Drawings indicating roof slopes and unique conditions
c: Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish
d: Building Sections: Drawings cut through important locations in the structure
e: Construction Details: Drawings showing specific construction of building elements at a large scale
f: Kitchen and bath elevations
g: Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
h: Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure CRAWLSPACE

Plans are sent in AutoCAD 2000 format

Plan Modifications

Want to make changes?

Plan modification is a way of turning a stock plan into your unique custom plan. It's still just a small fraction of the price you would pay to create a home plan from scratch. You will receive a FREE, no obligation, modification estimate to get exactly the home plan you've been dreaming of. Simply contact the modification department 1 of 3 ways:

Call 866-465-5866 and talk to a live person that can give you and FREE modification estimate over the phone!

Email Us - Please Include your telephone number, plan number, foundation type, state you are building in and a specific list of changes.

Fax: 651-602-5050 - Make sure to include a cover sheet with your contact info. Make attention to the COOLhouseplans.com Modification Department.

Cost To Build

What will it cost to build your new home?
Let us help you find out!

COOLhouseplans.com has partnered with Home-Cost.com to provide you the most accurate, interactive online estimator available. Home-Cost.com is a proven leader in residential cost estimating software for over 20 years.
No Risk Offer: Order your Home-Cost Estimate now for just $29.95! We will provide you with a discount code in your receipt for when you decide to order any plan on our website than will more than pay you back for ordering an estimate.

Accurate. Fast. Trusted.
Construction Cost Estimates That Save You Time and Money.

$29.95 per plan

** Available for U.S. and Canada

With your 30-day online cost-to-build estimate you can start enjoying these benefits today.

INSTANT RESULTS: Immediate turnaround—no need to wait days for a cost report.
RELIABLE: Gain peace of mind and confidence that comes with a reliable cost estimate for your custom home.
INTERACTIVE: Instantly see how costs change as you vary design options and quality levels of materials!
REDUCE RISK: Minimize potential cost overruns by becoming empowered to make smart design decisions. Get estimates that save thousands in costly errors.
PEACE OF MIND: Take the financial guesswork out of building your dream home.
DETAILED COSTING: Detailed, data-backed estimates with +/-120 lines of costs / options for your project.
EDITABLE COSTS: Edit the line-item labor & material price with the “Add/Deduct” field if you want to change a cost.

View Sample Report

View Feature List

Home-Cost.com’s INSTANT™ Cost-To-Build Report also provides you these added features and capabilities:

Accurate cost database of 43,000 zip codes (US & Canada)
Print cost reports or export to Excel®
General Contractor or Owner-Builder contracting
Estimate 1, 1½, 2 and 3-story home designs
Slab, crawlspace, basement or walkout basement
Foundation depth / excavation costs based on zip code
Cost impact of bonus rooms and open-to-below space
Pitched roof or flat roof homes
Drive-under and attached garages
Garage living – accessory dwelling unit (ADU) homes
Duplex multi-family homes
Barndominium / Farmdominium homes
RV grages and Barndos with oversized overhead doors
Costs adjust based on ceiling height of home or garage
Exterior wall options: wood, metal stud, block
Roofing options: asphalt, metal, wood, tile, slate
Siding options: vinyl, cement fiber, stucco, brick, metal
Appliances range from economy to commercial grade
Multiple kitchen & bath counter / cabinet selections
Countertop options range from laminate to stone
HVAC, fireplace, plumbing and electrical systems
Fire suppression / sprinkler system
Elevators

Previous Q & A

Previous Questions and Answers

Q: One of the q&a says that the roof load is 50 and another says 150. I assume that's just a type. Please confirm that it's 50.

A: It is 50.

Date Posted: 09-Mar-22

Q: Doesn't a roof style like this cause a kite effect with high wind storms? I would think it would be prone to roof wind damage?

A: House is designed with H2.5T Hurricane clips

Date Posted: 14-Sep-21

Q: Hello, what is the rain load for the roof? Can a spiral or ergonomic staircase be added for the loft space instead of the ladder? Is there enough room for it?

A: The roof is designed for 150lb snow load. You could substitute a spiral stair for the loft ladder is you’d like

Date Posted: 07-Jul-21

Q: Is this a stem wall slab? If not, can you quote to modify it to that?

A: This plan is a Stem Wall slab foundation

Date Posted: 28-Jun-21

Q: Where would the mechanical room (water heater and furnace) be?Is there a plumbing plan to go with the plans ? Where would either a gas fireplace or pipe chasing for a wood/pellet stove be best located in the family room. Thinking of wanting to secure upper floor from second floor so could a secure door be installed at the top of the stairway entering the kithchen. Could an 8 foot wide deck be extended from the plan deck around the side of the structure on the upstairs bedroom side of the reverse plan to about the length of the bedroom? Thinking for this plan for a high snowfall area requiring 150 lbs/ft2 snowloading. Does this plan meet that criteria? Finally what is the designed pitch of the roof and recommended crossbeam material for the three main crossbeams?

A: There is ample room in the garage for mechanical and water heater. I believe that the plans can be changed as you have described through our modification team. Please click on the Plan Modifications tab found on the details page for this specific plan. There you will find the options for how to contact the group that modifies this specific plan, and you will get a no-obligation quote for the change(s).

Date Posted: 08-Mar-21

Q: Hello, Can you build this on the CA Sierra's and does the plan include information for snow loads and seismic activity? Thank you

A: Yes! It’s designed to meet IRC codes. The roof is designed for 50lb snow loads. You will need a local professional to ensure it meets your local seismic needs.

Date Posted: 10-Feb-21

Q: How large are the roof overhangs? They look to be about 30".

A: They are 36” and can be set at your preference in the field

Date Posted: 15-Jan-21

Q: Can the snow load be increased to 100 lbs sq ft? Is that simply a matter of increasing the size of the rafters and decreasing the spacing between them? And maybe increasing the size of the walls where the beams go to distribute the weight?

A: You can go to 100lbs by increasing the rafter size. The wall size should not need to change, but you may need to resize some window headers. Your local lumberyard can help with that.

Date Posted: 15-Jan-21

Q: Looking for this style of home and floor layout but need a front entry garage instead of the current side entry shown with this particular plan. Is there is a plan that already exists with the design we are looking for?

A: Yes, see plan 40863: https://www.coolhouseplans.com/house-plan-40863

Date Posted: 30-Dec-20

Q: would it be possible to replace the garage door with a people door? Where is the boiler, furnace, AC, the utility room? Would this design work for radiant under slab heat? Where would the washer and dryer go?

A: Yes the garage door can be replace with a person door. The boiler, furnace, ac would be located in an area in the garage. You can certainly use radiant under slab heat. Currently the washer and dryer are located in the upstairs bath.

Date Posted: 04-Sep-20

Q: What is the maximum snow load?

A: It was designed to carry 50lb snow load.

Date Posted: 02-Sep-20

Q: Hi I'm interested on this model plan, is there an option for a fireplace? If yes, where would it be the location or possible locations?

A: We do not have the plan with a fireplace, but it could go anywhere you want. I suggest a wood burning stove, as it will require the least amount of space. With it you really wouldn’t need us to make modifications. Just install in the field.

Date Posted: 13-Aug-20

Q: Does the materials list include the exterior siding and the exterior sheathing?

A: Yes it will

Date Posted: 20-Jul-20

Q: How much does it cost to build this plan on average? Without the price of the lot

A: Use the cost to build link on right hand side of the plan page. It will use your location and calculate the costs for you.

Date Posted: 10-Jul-20

Q: Regarding plan #40816, do you offer there ability to download a sample plan with dimensions for the purpose of determining if the house will fit in a lot without buying the full set. Obviously, I would purchased the full set once it was determined the house size would fit on the lot.

A: You can purchase the study set, or use the overall width and depth shown on the image

Date Posted: 06-Jul-20

Q: I have a question about the differences in this plan and the 2 bedroom plan. One is a two car garage and this model says it has a 1 car garage but the 16’ x 8’ door measurement is the same in both floor plans. Also, is the loft area part of the 3 bedroom plan?

A: The garage areas are the same size, just called out differently on the website. Yes the loft is in both plans.

Date Posted: 11-May-20

Q: Thank you so much for your prompt reply regarding the loft in plan 40816. I would like to verify the garage door of 8x16 will accommodate 2 cars. Thank you. Sharon

A: Yes! 16’ garage doors are common in garages. It can be enlarge if you want. Our minimum change fee is $300, but your builder can probably make the change in the field.

Date Posted: 03-Oct-19
