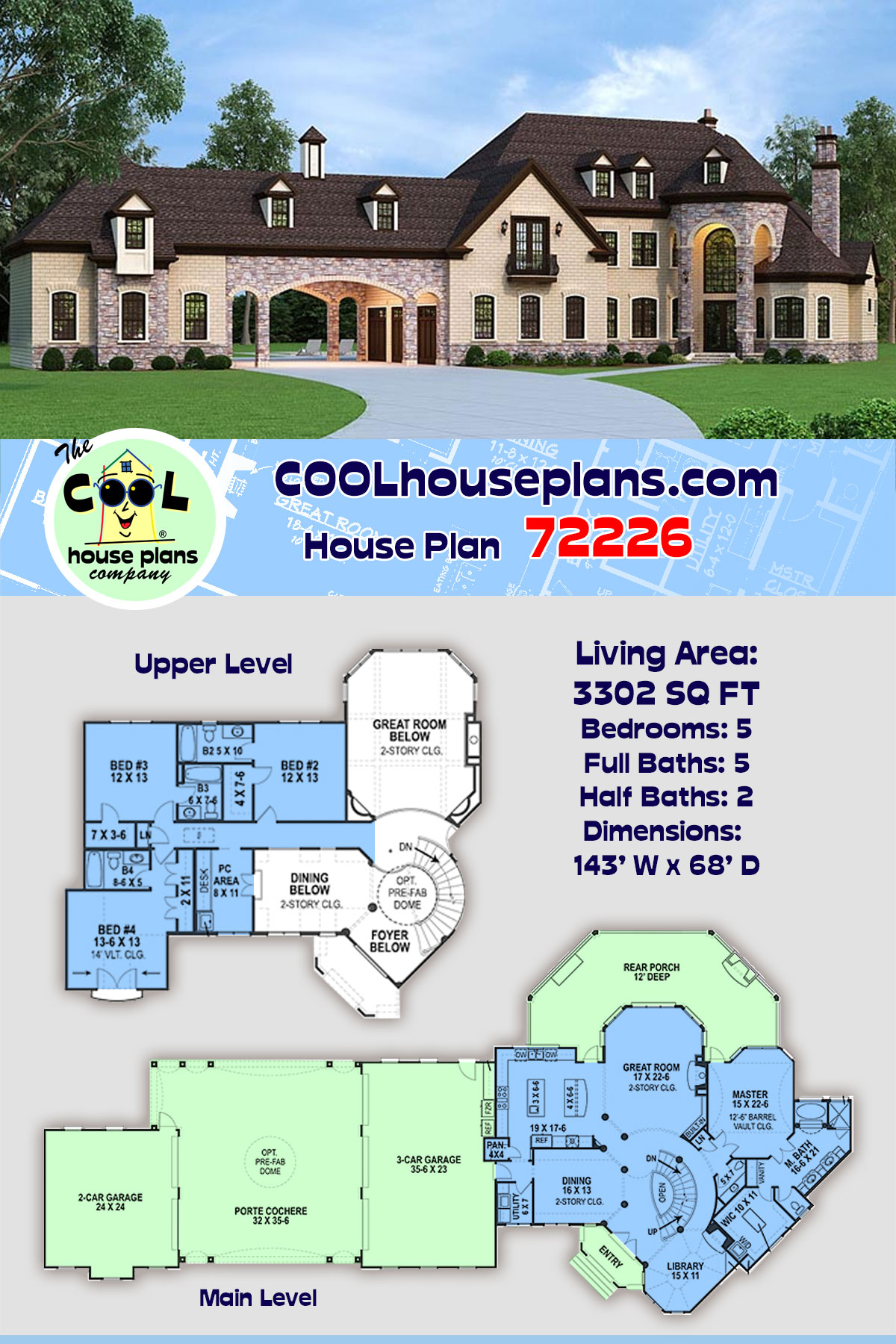

|Total Living Area:||3302 sq ft|
|Main Living Area:||2201 sq ft|
|Upper Living Area:||1101 sq ft|
|Unfinished Basement Area:||1707 sq ft|
|Garage Area:||1462 sq ft|
|Foundation Types:||Basement - * $300.00
Total Living Area may increase with Basement Foundation option.
Crawlspace - * $300.00
|Number of Stories:||2|
|Max Ridge Height:||40'0 from Front Door Floor Level|
|Primary Roof Pitch:||12:12|
|Porch:||1671 sq ft|
|Formal Dining Room:||Yes|
|2nd Floor Laundry:||Yes|
|1st Floor Master:||Yes|
|Main Ceiling Height:||10'0|
|Upper Ceiling Height:||9'0|
View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.
A: Q: Would you be able to tell me what the dots on level one near the dinning area are ? A: structural columns Q: Also, is it possible to get a complete 1 sheet of the framing? A: This construction set offers 4 sheets of suggested framing and structural notes. These are provided as a courtesy only. We're not an engineering firm and assume no responsibility for the calculations contained in the plan. A local engineer must be consulted prior to beginning construction. These sheets are not available pre-sale.
A: We do not have any additional photos or renderings at this time
A: Good morning, We don’t have any alternate renderings for this house plan. The customer can customize the materials and/or color of the exterior with the help of their builder. If standing on the 2nd floor, you will be able to look down into 3 spaces: the dining room, great room, and foyer. All 3 of these spaces are 2-story high. On your website, we suggest making the ‘dining below’ space white so that people know it’s not a living area We call out standard US sizes (i.e. 2x4 framing) but the customer can choose to modify the materials they use at their own expense with guidance from a local professional.
A: Hello, The house was not designed for any snow load. It meets national building codes but intended for the state of GA. Kind Regards, Ana
A: We don’t have any additional photos at this time. im so sorry!
A: Under roof between all levels is 8936
A: 1 in great room 1 in library
A: The library measurement is taken at an angle… 15-ft from front window to fireplace, 11-ft from foyer to exterior wall. The wic and master are the same. Please note all measurements are taken as accurately as possible in irregular size rooms. Doors will range between 2/0 to 3/0 for single. Are there specific doorways the customer would like more information on? Kind Regards,
A: There is no list, but the structural plans do size the beams. They must be checked to make sure they meet local requirements.
A: Hello, The plan offers a very detailed set of complimentary structural notes for all levels. However, we're not an engineering firm. The builder/owner is responsible for reviewing all notes and making adjustments locally (if necessary) at the expense of the owner prior to beginning construction. Kind Regards.
A: Stone and brick but the customer can make it whatever they want in the field. For example they can keep the brick ledge (for stone/brick) and use siding/stucco/hardi plank etc on the top. Kind Regards.
A: +/- 10’8
A: The garages are +/- 30-ft high
A: This home’s basement is in-ground
A: Sorry there are no photos available at this time
A: The house is approximately 87-ft wide without the porte cochere and 2-car garage.
A: Yes you can! Please click the "Modifications" tab above to get more information.
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
