Plan Number: 100819

  • 2251 Total Living Area
  • 812 Lower Level
  • 1439 Main Level
  • 3 Bedrooms
  • 2 Full Bath(s)
  • 1 Half Bath(s)
  • 3 Car Garage
  • 45'6" Wide x 64'0" Deep
Available Foundation Types:
  • Walkout Basement

Order Code: 00WEB

  • PDF File: $2,360.00
  • 1 Set: $945.00
  • 5 Sets plus PDF File: $1,405.00
  • CAD File: $2,590.00
  • CAD File: $2,840.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $335.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00

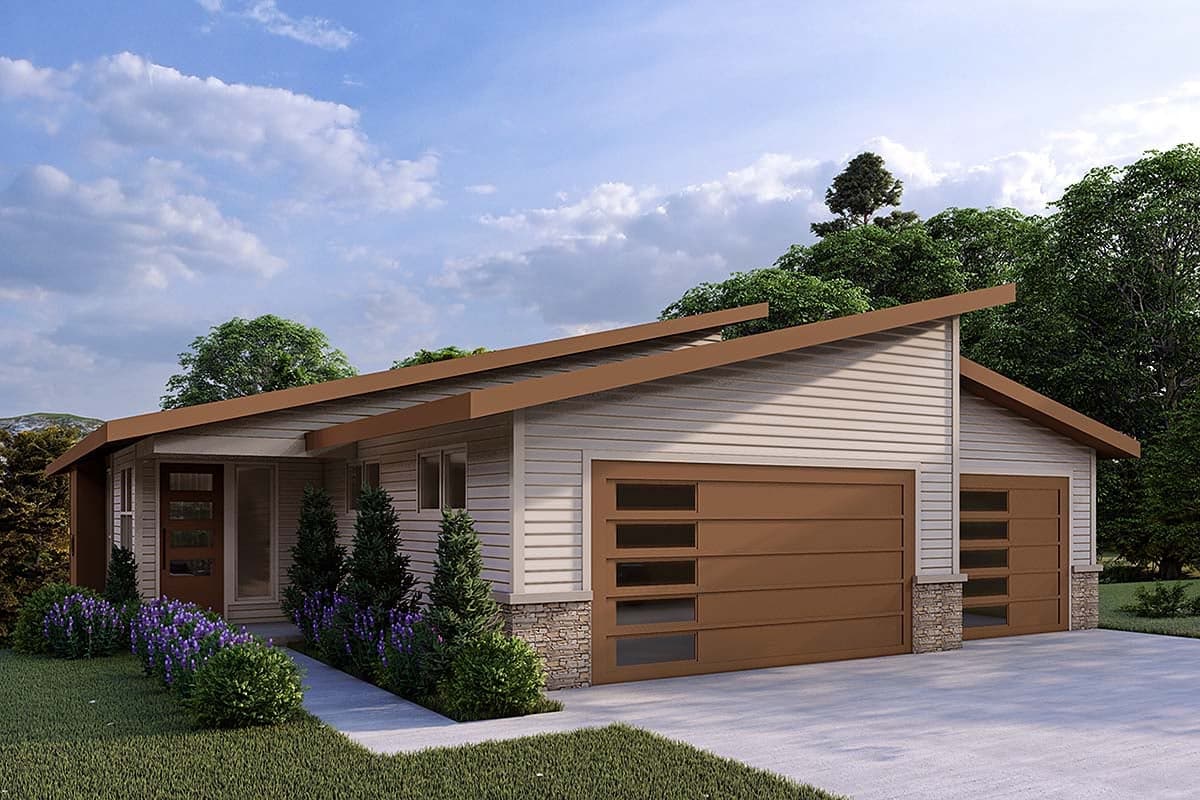

Plan Number 100819 | Order Code: 00WEB | Elevation

Reverse Plan

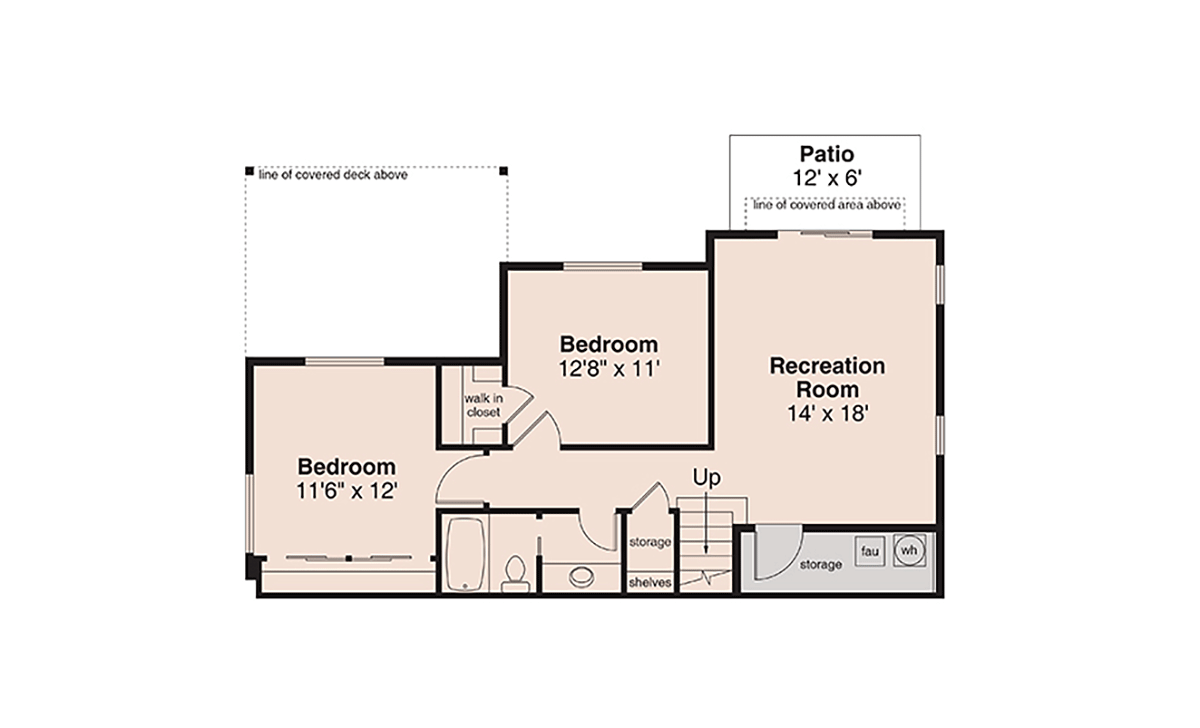

Plan Number 100819 | Order Code: 00WEB | Lower Floor Plan

Reverse Plan

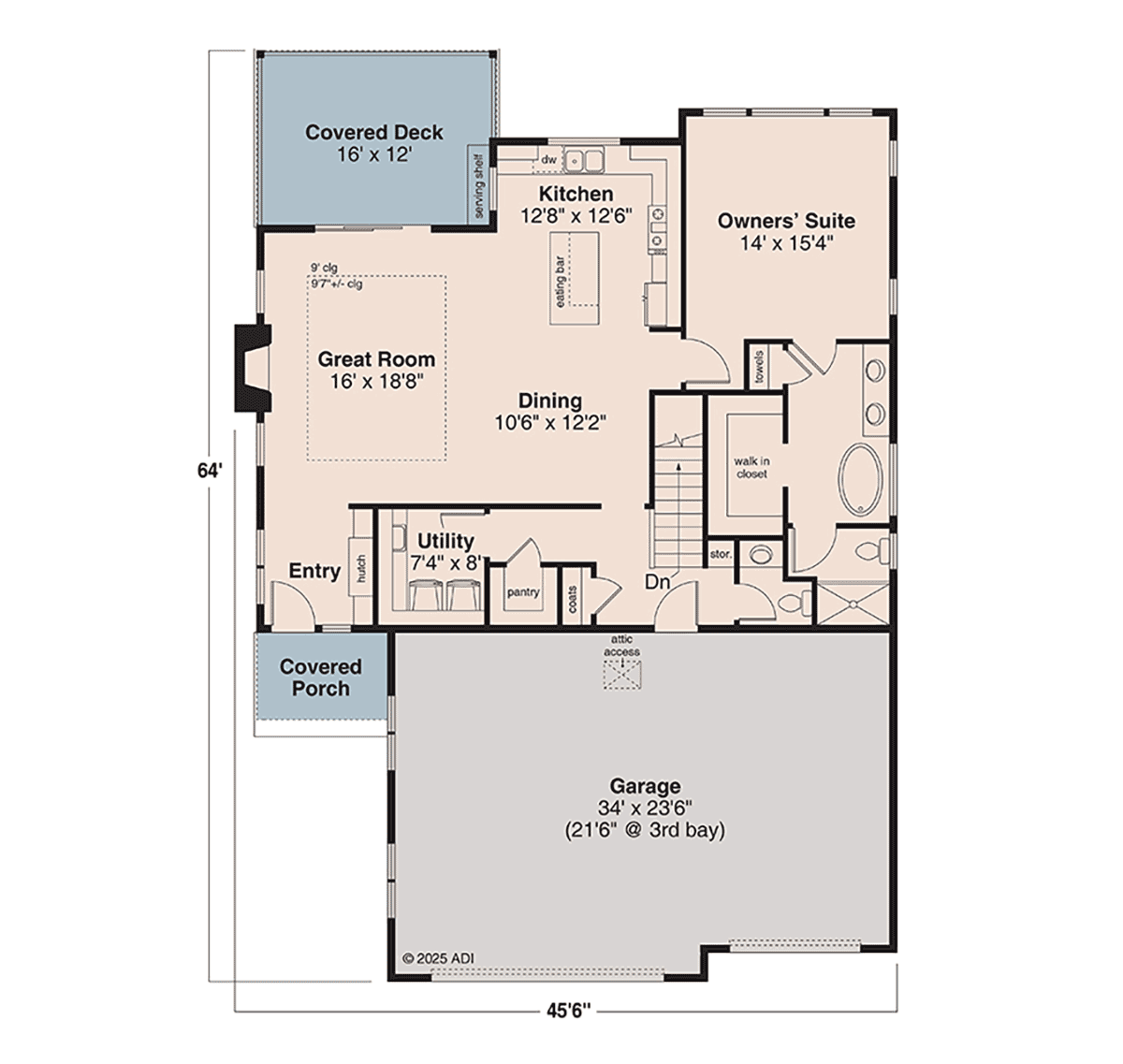

Plan Number 100819 | Order Code: 00WEB | First Floor Plan

Reverse Plan

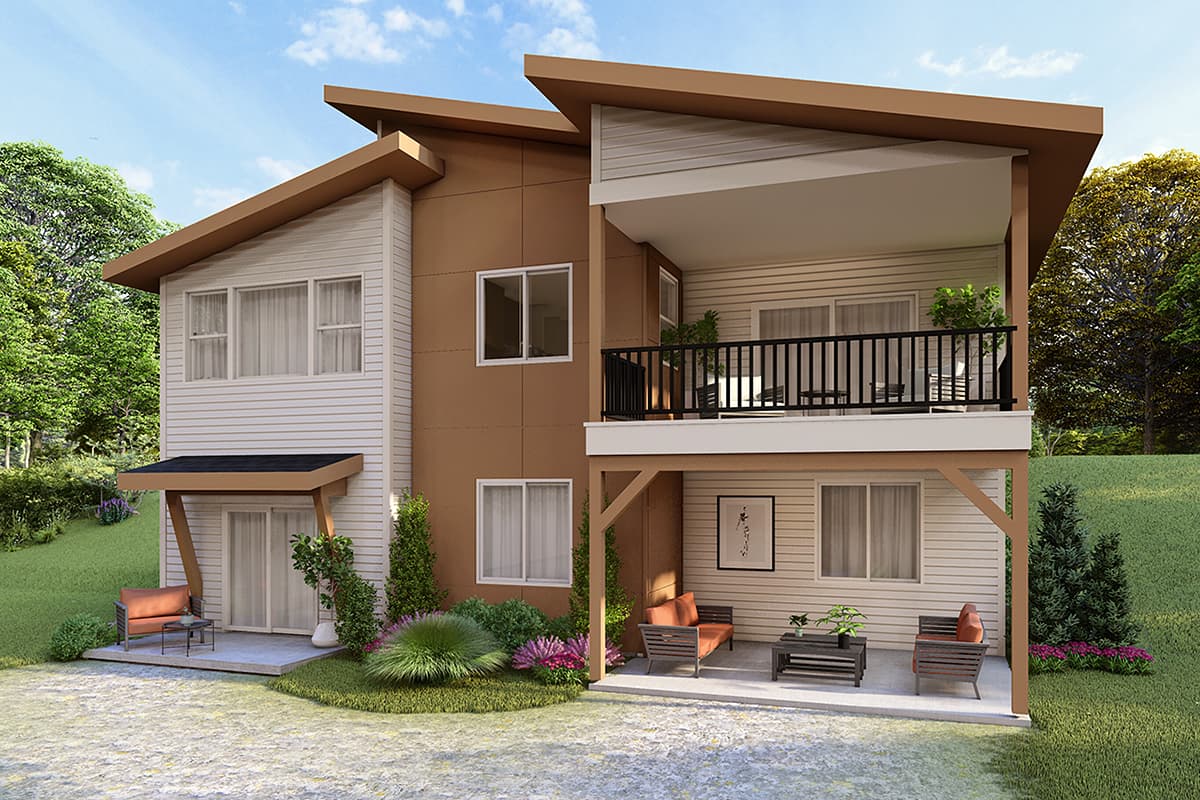

Plan Number 100819 | Order Code: 00WEB | Rear Elevation

Plan Number 100819 Specifications:

  • Total Living Area: 2251
  • Lower Living Area: 812
  • Main Living Area: 1439
  • Garage Area: 814
  • Garage Type: Attached
  • Garage Bays: 3
  • House Width: 45'6"
  • House Depth: 64'0"
  • Number of Stories: 2
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Max Ridge Height: 18'10" from Front Door Floor Level
  • Primary Roof Pitch: 3:12
  • Roof Load: 25 psf
  • Roof Framing: Truss and/or Stick
  • Porch: 484 sq ft
  • FirePlace: Yes
  • Main Ceiling Height: 9'

Available Foundation Types:

  • Walkout Basement

Plan Number 100819 Plan Pricing:

  • PDF File: $2,360.00
  • 1 Set: $945.00 **
  • 5 Sets plus PDF File: $1,405.00
  • CAD File: $2,590.00
  • CAD File: $2,840.00
    Unlimited Build License issued on CAD File orders.
  • Right Reading (True) Reverse: $335.00
    All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
  • Additional Sets: $55.00

** 1 Set order does not include a License-To-Build. For bidding purposes only. Customer can upgrade order within 90 days.

Larger garage door is 18' x 8'
Smaller garage door is 9' x 8'
Lower Floor Ceiling height is 9'
