Plan Number 41402
Order Code: C101

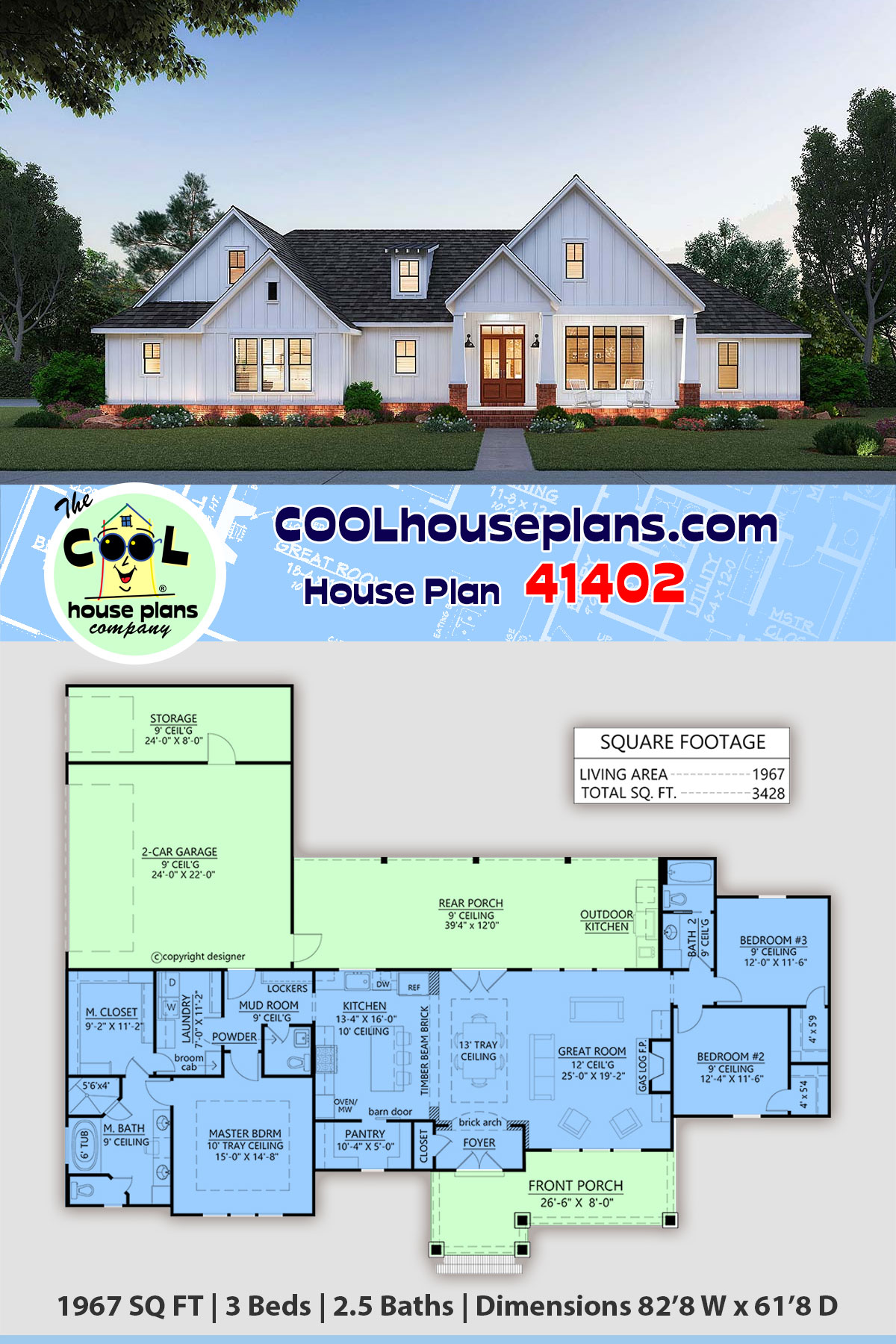

Traditional Style House Plan 41402
1967 Sq Ft, 3 Bedrooms, 2 Full Baths, 1 Half Baths, 2 Car Garage
Thumbnails: ON | OFF
Quick Specs
1967 Total Living Area1967 Main Level
3 Bedrooms
2 Full Baths, 1 Half Baths
2 Car Garage
82'8 W x 61'8 D
Quick Pricing
PDF File: $1,145.005 Sets: $1,245.00
5 Sets plus PDF File: $1,445.00
Unlimited Use PDF: $1,845.00
Plan Specifications
Specifications
| Total Living Area: | 1967 sq ft |
| Main Living Area: | 1967 sq ft |
| Garage Area: | 765 sq ft |
| Garage Type: | Attached |
| Garage Bays: | 2 |
| Foundation Types: | Crawlspace - * $200.00 Slab |
| Exterior Walls: | 2x4 |
| House Width: | 82'8 |
| House Depth: | 61'8 |
| Number of Stories: | 1 |
| Bedrooms: | 3 |
| Full Baths: | 2 |
| Half Baths: | 1 |
| Max Ridge Height: | 25'0 from Front Door Floor Level |
| Primary Roof Pitch: | 10:12 |
| Roof Framing: | Unknown |
| Porch: | 696 sq ft |
| FirePlace: | Yes |
| 1st Floor Master: | Yes |
| Main Ceiling Height: | 9'0 |
| Vaulted Ceiling: | Yes |
| Tray Ceiling: | Yes |
Special Features:
Plan Package Pricing
Pricing
Available Foundation Types:
Available Exterior Wall Types:
Prices subject to approval prior to fulfillment.What's Included?
What is Included in this House Plan?
When you purchase a plan package, you receive the license to build that plan one (1) time. The package includes:1/4" scale floor plan which includes window & door schedules. Our floor plans are very detailed.
1/4” scale Electrical layout which includes much detail such as: Recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc.
1/4" scale front and rear and side elevations.
1/4” scale foundation plans which do include floor & ceiling framing member specifications.
1/2” scale typical wall sections and all foundation section details.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail.
Miscellaneous details as needed per house plan.
Kitchen/ bath cabinet elevations are provided.
Plan Modifications
Want to make changes?
Receive a FREE modification estimate in one of 3 ways. Our modification team is ready to help you adjust any plan to fit your needs. The ReDesign process is simple and estimates are free!1. Complete this On-Line Request Form
2. Print, complete and fax this PDF Form to us at 1-800-675-4916.
3. Want to talk to an expert? Call us at 913-938-8097 (Canadian customers, please call 800-361-7526) to discuss modifications.
Note: - a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list.
We Work Fast!
When you submit your ReDesign request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 14 - 21 days!
We look forward to hearing from you!
Start today planning for tomorrow!
Cost To Build
QUICK-Cost-To-Build Estimate
View a Sample
View an actual, LIVE cost report. This report is for demo purposes only. Not plan specific.
Purchase Estimate
$24.95 per plan
** Available for U.S. only.
QUICK Cost-To-Build estimates have the following assumptions:
QUICK Cost-To-Build estimates are available for single family, stick-built, detached, 1 story, 1.5 story and 2 story home plans with attached or detached garages, pitched roofs on flat to gently sloping sites.QUICK Cost-To-Build estimates are not available for specialty plans and construction such as garage / apartment, townhouse, multi-family, hillside, flat roof, concrete walls, log cabin, home additions, and other designs inconsistent with the assumptions outlined in Item 1 above.
User is able to select and have costs instantly calculate for slab on grade, crawlspace or full basement options.
User is able to select and have costs instantly calculate different quality levels of construction including Economy, Standard, Premium. View Quality Level Assumptions.
Estimate will dynamically adjust costs based on the home plan's finished square feet, porch, garage and bathrooms.
Estimate will dynamically adjust costs based on unique zip code for project location.
All home plans are based on the following design assumptions: 8 foot basement ceiling height, 9 foot first floor ceiling height, 8 foot second floor ceiling height (if used), gable roof; 2 dormers, average roof pitch is 12:12, 1 to 2 covered porches, porch construction on foundations.
Summarized cost report will provide approximately 70 lines of cost detail within the following home construction categories: Site Work, Foundations, Basement (if used), Exterior Shell, Special Spaces (Kitchen, Bathrooms, etc), Interior Construction, Elevators, Plumbing, Heating / AC, Electrical Systems, Appliances, Contractor Markup. View a LIVE Sample Cost Report.
QUICK Cost-To-Build generates estimates only. It is highly recommend that one employs a local builder in order to get a more accurate construction cost.
All costs are "installed costs" including material, labor and sales tax.
* Limit one $24.95 credit per complete plan package order.
** Available for U.S. only.
Previous Q & A
Previous Questions and Answers
Q: Can this plan be purchased with crawl space foundation? Where is the attic access?
A: Yes and pull down stairs are near powder room hallway
Q: What is the length of the cabinet with the oven and range? Thank you, Cathy

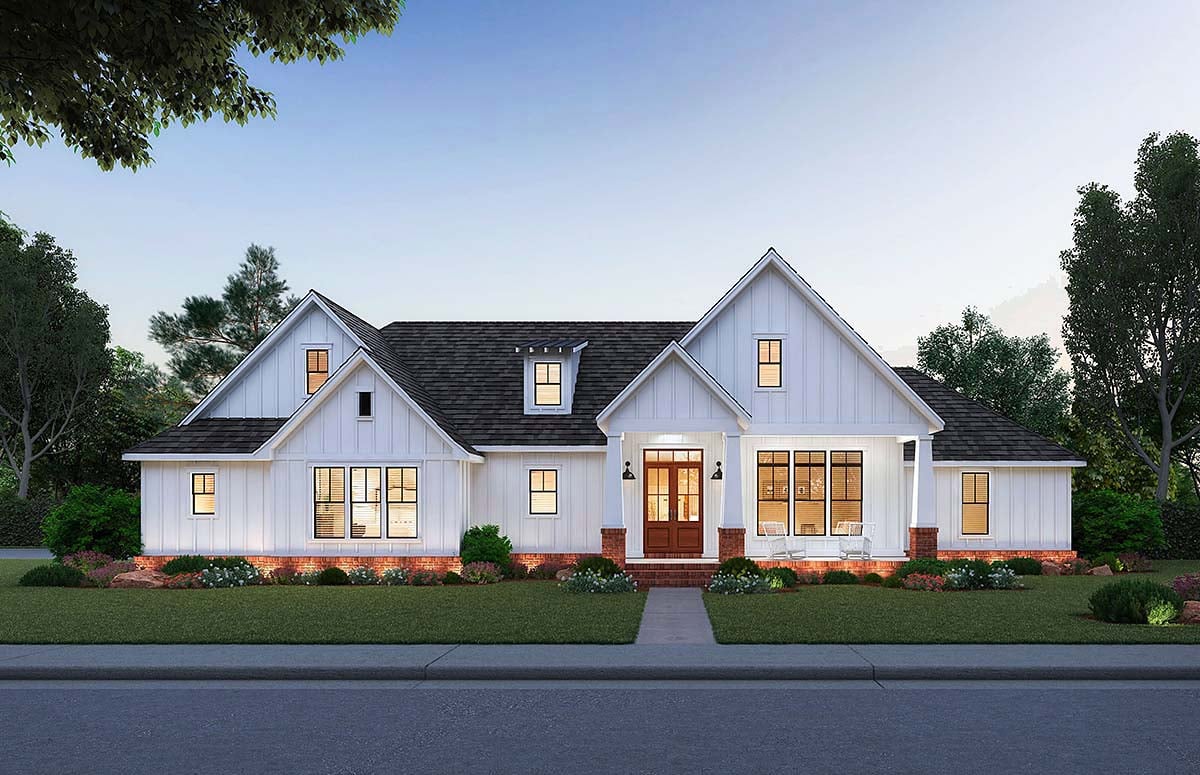

Q: This shows level one. Is there a description of the upper area, where the lights are shining through the windows?
A: This is only a single story house plan, that is just attic lighting
Q: Is there supposed to be a bonus room, as the upper lights indicate.
A: No there's no bonus room.
Q: Is there space shown in the attic to run ductwork?
A: Yes
Q: my wife and i are considering purchasing this plan but our builder is wanting to see if we can see the roof plan prior to purchase in order to make the proper modifications due to our budget. Is there anyway we can see this prior to purchase the plan modification option?
A: Not possible
Q: Are the porches part of the slab?
A: yes
Q: Are the triple windows in the front five or six feet windows?
A: 6’6” plus a transom above
Q: Is the ceiling in the great room vaulted or is it flat?
A: flat
Q: What size lumber is in your plans for the rafters
A: 2x6”
Q: If I were to look through that small high window, does it look into the house or does it look only into the porch area?
Laura
A: It’s in the attic way above the porch
Q: I am wondering about the small window above the front door, slightly to the right. What is the shape inside of the home? is there a ledge on the inside above the great room, acting almost like a tunnel going to the window? Any photos of what this will look like? Laura
A: That really doesn’t work, the ceiling would have to be over 18’ in living room, and he window is out flush with the porch wall (above posts), which is 7-8’ from living room porch wall.
Q: Are the Hvac/ water heater location in the garage? If not where would they be?,
A: We don’t designate those locations on our plans, those should be done locally with your contractor.
Q: Does the plan show the interior elevations showing location of brick, crown molding, cabinets, etc.
A: Full cabinet elevations are shown but it may not have any interior brick details shown
Q: Hello- Do you have any actual photos of the back of the house (instead of just a drawing) or actual photos from inside of the house and what it would look like? Thanks Lori O'Connor
A: No photos yet, but this is my #1 seller!
Q: Is the roof truss or stick framed?
A: Stick frame
Q: what is the length from the island to the wall the fire place is on?
A: 28’-10”
Q: Do you have this plan with a staircase to a bonus room over the garage or remainder of the house? There is a lot of space that could be used if accessible. Thanks Mark Vaughn Great Oaks Contracting
A: No stairs sorry
Q: What is the size of the kitchen island in this plan?
A: 3’6”x7’ but could be 4’ easily
Q: What is the size of the living room not counting the dining area?
A: 16’ x 19’-2”
Common Questions:
Q: Can I make modifications to this plan?
A: Yes you can! Please click the "Modifications" tab above to get more information.
Q: What is the estimated price to build this plan?
A: The national average for a house is running right at $125.00 per SF. You can get more detailed information by clicking the Cost-To-Build tab above. Sorry, but we cannot give cost estimates for garage, multifamily or project plans.
